If you read our three-part series on remotely-sensed vegetative indices and land cover data, you might be wondering, what’s next? One application is to measure long term change in forest cover over certain areas.
First let’s start with a few definitions. Tree cover loss is the “complete removal of tree cover for any reason”, whereas deforestation is the permanent removal of natural forest cover by humans1. Tree cover loss could be caused by wildfires, storm damage, pests, or other factors, and can also include the removal of non-natural tree cover (e.g. logging in forests planted specifically for production). Deforestation is only a part of tree cover loss. Canopy density is a measure of the proportion of land is covered by the leafy canopy of trees. Even when land is still classified as forest, a reduction of canopy density is a form of forest degradation.
In 2000, 4 billion hectares of the world’s surface was forest, covering 30% of all land. According to Global Forest watch, between 2001 and 2025, a net 100 million hectares (2.4%) of tree cover was lost1.
Loss or disturbance of forests can contribute to a variety to human health impacts.
Prior to the use of remotely sensed spatial data on forest cover, the FAO created reports every 5 years on global forest cover, drawing from national inventories9. However, this method combined forest cover measures using different methodologies.
Starting in the 2000s, satellite imagery became a far more feasible, comparable, and accurate way of measuring global forest cover. Remotely sensed data to measure tree cover include optical and radar data.
Optical data uses reflectance of the sun’s light to assess land cover, such as measuring the amount of red, infrared, or near infrared light reflected off the surface of the earth to approximate the area’s greenness. As forest cover is degraded or removed, reflectance will show reduced greenness. Data on greenness is often expressed as vegetative indices, which describe density of forest cover rather than a binary value indicating whether it is forested.9 Sources of optical data include Landsat, AVHRR, MODIS, VIIRS, and Sentinel. (See our post on vegetative indices for more details).
A limitation of optical data is the presence of cloud cover, especially in wet, tropical regions of the world. Radar uses long wavelengths to penetrate tree canopies and measure the density of canopy structure. However, radar data must be used in combination with optical data and be preprocessed to account for noise. A notable forest cover data product derived from radar imagery, ALOS/PALSAR, comes from Japan’s space agency, JAXA.9
An organization called Global Forest Watch uses numerous data sources and advanced methodology to monitor tree cover loss and deforestation around the world. In collaboration with the University of Maryland’s GLAD lab, they use Landsat 5, 7, and 8, as well as application of algorithms based on training data10. They measure loss of tree cover for trees higher than five meters and consider areas as forested if trees comprise 30% or more of the ground cover.
For social science researchers hoping to use forest cover or forest change as a mechanism to understand health outcomes, these complex methodologies may seem out of reach. However, if you can understand the assumptions made and the differences between data layers, land or forest cover data can still be used to inform your analyses. As a simple case study, we’ll look at the net forest cover change in the Democratic Republic of the Congo (DRC). As of 2010, the DRC ranked fifth in terms of total forest area. Two-thirds of its land area is forest, but significant forest loss has occurred over the past 25 years, with a majority of the disturbance of forested areas caused by shifting cultivation (small-scale, temporary clearing for farming) or permanent removal of forest for agriculture.1
A logical first step in measuring change in forest cover over time would be to compare the total land area categorized as forest in Land Cover/Land Use (LULC) data. We will demonstrate a bi-temporal (comparing the state of forest cover in two snapshots in time). First, we bring in the libraries we need and vector shapefiles for the DRC.
# Load libraries
library(terra)
library(tidyr)
library(stringr)
library(sf)
library(ggplot2)
library(ggspatial)
library(RColorBrewer)
library(scales)
library(dplyr)
library(gt)
# Read in shapefiles with 1st level administrative boundaries
drc_internal_borders <- read_sf("data/COD_admbnda_adm1_20170407.shp") |>
st_make_valid()Next, I’ll read in data from NASA’s LULC product (MCD12C1).
I chose to use MCD12C1 because:
# Read in majority land cover type for 2001 and 2021 (first layer)
land_majority_lulc_2001 <- sds("data_local/lulc/2001/MCD12C1.A2001001.061.2022146170409.hdf")[1]
land_majority_lulc_2021 <- sds("data_local/lulc/2021/MCD12C1.A2021001.061.2022217040006.hdf")[1]
# Get CRS of TIF file
lulc_2001_crs <- crs(land_majority_lulc_2001)
lulc_2021_crs <- crs(land_majority_lulc_2021)
# Convert vector data to raster CRS
drc_internal_borders <- st_transform(drc_internal_borders, crs = lulc_2001_crs)
# Convert the borders into a Spat Vector object
drc_borders_vector <- vect(drc_internal_borders)We want to create a raster with recoded values such that the pixel is a 1 if the majority land cover of the pixel is forest, or codes 1 through 5 (See Table 1 below). Codes 6 through 255 represent land cover such as savanna, croplands, built up areas, etc. that are not forest, so we will recode these to zero. For the full list of codes, see Table 3 in the MCD12Q1 User Guide. We also want to crop and mask the raster data to only pixels within the borders of the DRC to keep the raster’s size more manageable.
Table 1: MCD12C1 land cover code classification scheme
| Name | Value | Description |
|---|---|---|
| Evergreen Needleleaf Forests | 1 | Dominated by evergreen conifer trees (canopy >2m). Tree cover >60%. |
| Evergreen Broadleaf Forests | 2 | Dominated by evergreen broadleaf and palmate trees (canopy >2m). Tree cover >60%. |
| Deciduous Needleleaf Forests | 3 | Dominated by deciduous needleleaf (larch) trees (canopy >2m). Tree cover >60%. |
| Deciduous Broadleaf Forests | 4 | Dominated by deciduous broadleaf trees (canopy>2m). Tree cover >60%. |
| Mixed Forests | 5 | Dominated by neither deciduous nor evergreen (40-60% of each) tree type (canopy >2m). Tree cover >60%. |
Because we want to conduct the same manipulations to the land cover data files from both 2001 and 2021, let’s create a function. This way, we reduce the likelihood of errors and keep our code tidier.
We’ll write the function so that its two arguments are a raster dataset (land cover), then a vector dataset (country borders).
# Create function that crops the land use raster and recode the land cover data
crop_mask_recode <- function(land_raster,border_data) {
land_raster_cropped <- crop(land_raster, border_data)
land_raster_masked <- mask(land_raster_cropped, border_data)
#Values of 0 indicate water - set to NA
land_raster_masked[land_raster_masked == 0] <- NA
#Combine categories 1 to 5 into 1, all else zero
modified_raster <- land_raster_masked
modified_raster[modified_raster >=1 & modified_raster <= 5] <- 1
modified_raster[modified_raster > 5] <- 0
return(modified_raster)
}
# Apply the function above to LULC data from 2001 and 2021
forest_2001 <- crop_mask_recode(land_majority_lulc_2001,drc_borders_vector)
forest_2021 <- crop_mask_recode(land_majority_lulc_2021,drc_borders_vector)We’ll use the ggplot2 library to visualize the forest extent rasters we’ve just created for 2001 and 2021
# Mapping forest cover in DRC in 2001
forest_2001_factor <- as.factor(forest_2001)
forest_2001_map <- ggplot() +
layer_spatial(forest_2001_factor) +
scale_fill_manual(
values = c(
"0" = "lightgray",
"1" = "darkgreen"
),
na.value = "transparent",
na.translate = FALSE,
guide = "none"
) +
theme_minimal() +
labs(title = "2001")+
theme(plot.title = element_text(hjust = 0.5, size = 10))
# Mapping forest cover in DRC in 2021
forest_2021_factor <- as.factor(forest_2021)
forest_2021_map <- ggplot() +
layer_spatial(forest_2021_factor) +
scale_fill_manual(
values = c(
"0" = "lightgray",
"1" = "darkgreen"
),
na.value = "transparent",
na.translate = FALSE,
guide = "none"
) +
theme_minimal() +
labs(title = "2021") +
theme(plot.title = element_text(hjust = 0.5, size = 10))
# Display the maps side by side
library(patchwork)
combined_maps <- forest_2001_map + forest_2021_map
combined_maps + plot_annotation(title = "Forest cover in Democratic Republic of the Congo", caption = "Data source: NASA LULC")

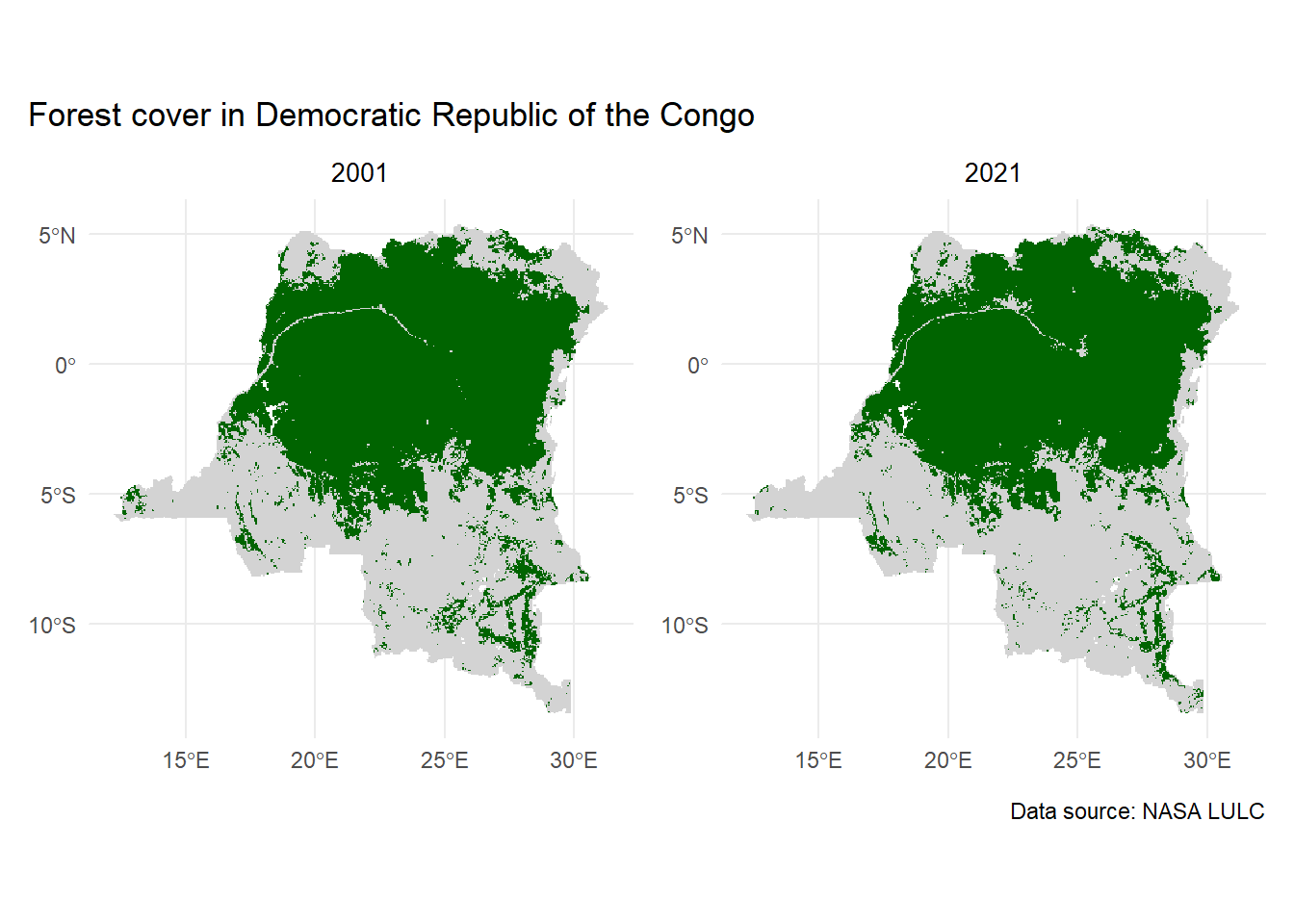

A brief comparison of the maps side by side reveal what appears to be loss of forest, particularly along the Congo River in north-central DRC.
We’ll subtract the 2001 forest binary raster from the 2021 forest raster to get a very basic measure of net forest cover change between these two time periods.
# Take the difference of the binary forest rasters
lulc_difference <- forest_2021 - forest_2001
# Turn the pixel difference values into a vector
lulc_difference_values <- as.data.frame(lulc_difference, na.rm = TRUE)
# Rename column to diff for ease of reference
colnames(lulc_difference_values) <- "diff"Pixels with a value of 1 mean that the pixel was not forest in 2001, but forest in 2021. If the pixel’s value is -1, the pixel was a forest in 2001, but was not by 2021. If the value is zero, either it remained a forest or not a forest in both years.

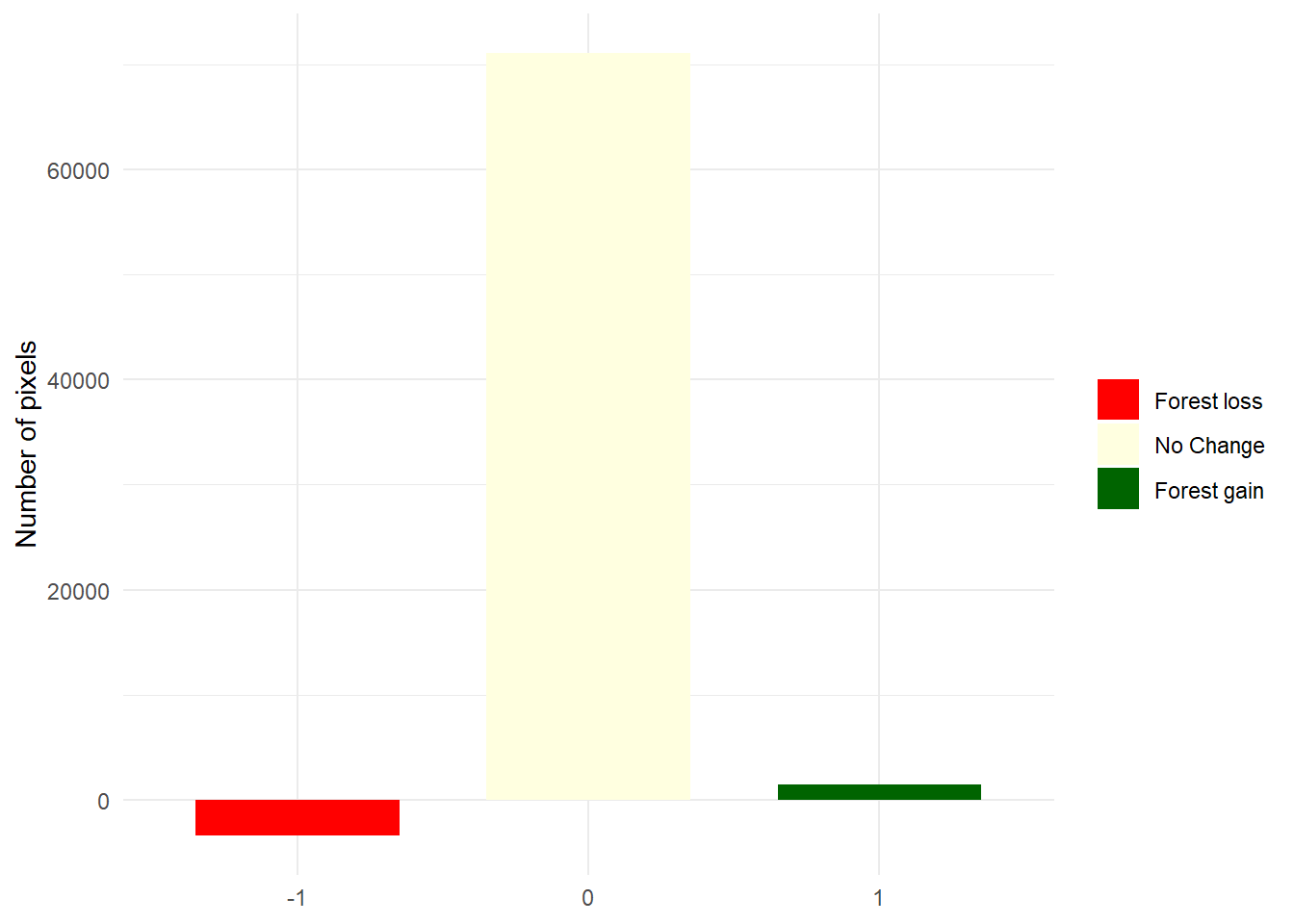

To visualize our difference raster, we can use a diverging bar chart. We’ll create a dataframe that contains a column of all the pixel values without any spatial metadata within it (the object freqs). The majority of pixels did not change, at least between forest and non-forest. We of course would not be able to capture land use change between different types of non-forest land cover.
# Create a new dataframe with a count of pixels for each difference value
freqs <- lulc_difference_values %>%
count(diff)
# Because we want to present forest loss as a negative,
# we turn the count of -1s into a negative number
freqs <- freqs %>%
mutate(
plot_n = ifelse(diff == -1, -n, n)
)
# Plot frequency of pixels in a diverging bar chart
ggplot(freqs,
aes(x = factor(diff, levels = c(-1, 0, 1)),
y = plot_n,
fill = factor(diff))) +
geom_col(width = 0.7) +
scale_fill_manual(
values = c(
"-1" = "red",
"0" = "lightyellow",
"1" = "darkgreen"
),
labels = c(
"-1" = "Forest loss",
"0" = "No Change",
"1" = "Forest gain"
)
) +
scale_y_continuous(labels = abs) +
labs(
x = NULL,
y = "Number of pixels",
fill = NULL
) +
theme_minimal()

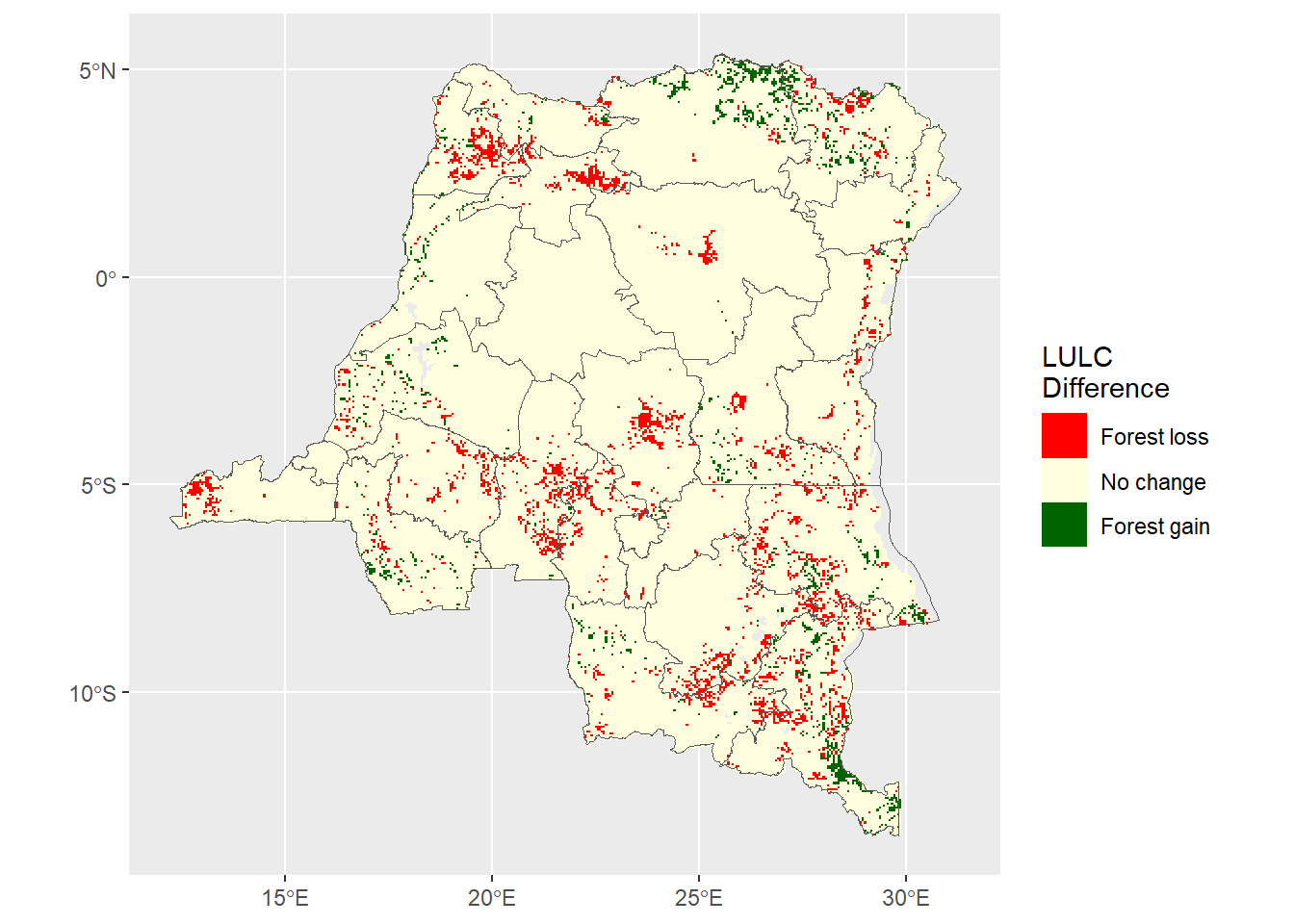

Next, we’ll visualize the net change in forest cover spatially, by mapping our difference raster. The raster value is currently stored as a continous numeric variable, and to map it the way we’d like, we will change the raster value into a factor variable.
# Create a raster file with the net change in forest cover
# as a factor variable for mapping
lulc_difference_factor <- as.factor(lulc_difference)
# Adding labels to the different raster values
levels(lulc_difference_factor) <- data.frame(
value = c(-1, 0, 1),
lulc = c("Forest loss", "No change", "Forest gain")
)
# Create a map to show spatial distribution of forest loss and gain
lulc_differences_map <- ggplot() +
layer_spatial(lulc_difference_factor) +
scale_fill_manual(
values = c("Forest loss" = "red",
"No change" = "lightyellow",
"Forest gain" = "darkgreen"),
na.value = "transparent",
na.translate = FALSE,
name = "LULC\nDifference"
) +
layer_spatial(drc_borders_vector, fill = "transparent")
lulc_differences_map
Mapping the tree cover change spatially demonstrates that there were patterns to forest loss and gain, particularly net forest cover loss along the periphery of the Congo Basin rain forest in the northwestern regions of Sud-Ubangi and Mongala, and central regions of Sankuru and Kasaï. However, there was some noticeable forest cover gain in the north central region of Bas-Uele.
First, let’s check our data against the estimates of other sources. Global Forest Watch estimates that the DRC contained 160 million hectares (Mha) of natural forest in 2000. The resolution of our data is 0.05 degrees, or 5.56 kilometers at the equator, so we’ll multiply the number of pixels by 5.56 squared, and then by 100 because there are 100 hectares in a square kilometer.
We use the weights = TRUE argument within the extract function to count only portions of pixels bisected by the border vector
# Check resolution of raster
res(forest_2001) # 0.05 degrees is about 5.56 km at the equator
#> [1] 0.05 0.05
res(forest_2021) # these should both be the same resolution
#> [1] 0.05 0.05
# Checking total forest hectares against GFW's estimate of 160 Mha in 2000
total_forest_check_2001 <- terra::extract(forest_2001,
drc_borders_vector,
fun="sum",
weights = TRUE,
na.rm = TRUE
)
total_forest_check_2001 <- total_forest_check_2001 %>%
mutate(total_hectares = (Majority_Land_Cover_Type_1*5.56*5.56*100))
#sum across regions
sum(total_forest_check_2001$total_hectares)
#> [1] 129194114Our estimate is about 129 Mha, which is a significant underestimate. This could be due to a number of factors:
Next, we’ll calculate the net change in forest cover by province in DRC. For additional context, we’ll calculate the total area within each province and attach the province name to the summary dataframe.
# Calculate area bound by each sub-national region in kilometers
areas_km2 <- expanse(drc_borders_vector, unit = "km")
# Attach calculated area to vector data
drc_borders_vector$Area_km2 <- areas_km2
# Create an ID value to indicate the region for easy merging later
drc_borders_vector$ID <- 1:nrow(drc_borders_vector)
# Extract the sum of pixel values by region
lulc_difference_region <- terra::extract(lulc_difference,
drc_borders_vector,
fun="sum",
weights = TRUE,
na.rm = TRUE
)
# Add region name onto extracted data
admin_df_lulc <- as.data.frame(drc_borders_vector)
lulc_difference_region <- lulc_difference_region %>%
left_join(admin_df_lulc, by = "ID")
Once we’ve extracted the net change of forest in terms of number of pixels within each region, then we’ll convert pixels to square kilometers by multiplying the number of pixels by 5.56 squared. Then, we’ll display a table with the net change in each province along with the total area in the province for context.
# Each pixel is 0.05 degrees or 5.56 km on each side
lulc_difference_region <- lulc_difference_region %>%
mutate(net_sq_km_change = (Majority_Land_Cover_Type_1*5.56^2))
# Filter to only the columns we need
lulc_difference_region_filtered <- lulc_difference_region %>%
select(NOM, net_sq_km_change, Area_km2)
# Create table
region_summary_table <- lulc_difference_region_filtered %>%
gt() %>%
tab_header(
title = "Net forest change between 2001 and 2021 by DRC province"
) %>%
cols_label(
NOM = "Province",
net_sq_km_change = "Net change in forest (sq km)",
Area_km2 = "Province total area (sq km)"
) %>%
fmt_number(
columns = net_sq_km_change,
decimals = 1
) %>%
fmt_number(
columns = Area_km2,
decimals = 0
) %>%
tab_options(
heading.align = "left",
table.font.names = "Arial"
)
# Display the table
region_summary_table| Net forest change between 2001 and 2021 by DRC province | ||
| Province | Net change in forest (sq km) | Province total area (sq km) |
|---|---|---|
| Kasaï-Oriental | −283.8 | 10,199 |
| Tshopo | −2,352.5 | 200,479 |
| Ituri | −356.4 | 64,965 |
| Kongo-Central | −3,433.6 | 53,967 |
| Maï-Ndombe | 510.4 | 128,486 |
| Kwilu | −4,420.0 | 79,184 |
| Kwango | 252.6 | 89,941 |
| Equateur | 1,625.1 | 102,046 |
| Sud-Ubangi | −6,865.3 | 52,043 |
| Nord-Ubangi | −1,440.0 | 54,199 |
| Mongala | −5,382.1 | 56,172 |
| Tshuapa | 0.0 | 132,925 |
| Bas-Uele | 8,186.8 | 148,610 |
| Haut-Uele | 821.4 | 91,337 |
| Nord-Kivu | −1,927.8 | 58,958 |
| Maniema | −2,461.0 | 127,598 |
| Lualaba | −4,010.4 | 121,780 |
| Haut-Lomami | −7,335.2 | 109,079 |
| Tanganyika | −6,419.5 | 132,643 |
| Haut-Katanga | −3,027.1 | 124,899 |
| Sankuru | −6,047.6 | 108,241 |
| Lomami | −831.0 | 53,968 |
| Kasaï-Central | −4,639.8 | 57,076 |
| Kasaï | −8,049.9 | 96,715 |
| Sud-Kivu | −2,172.9 | 64,228 |
| Kinshasa | 0.0 | 10,609 |

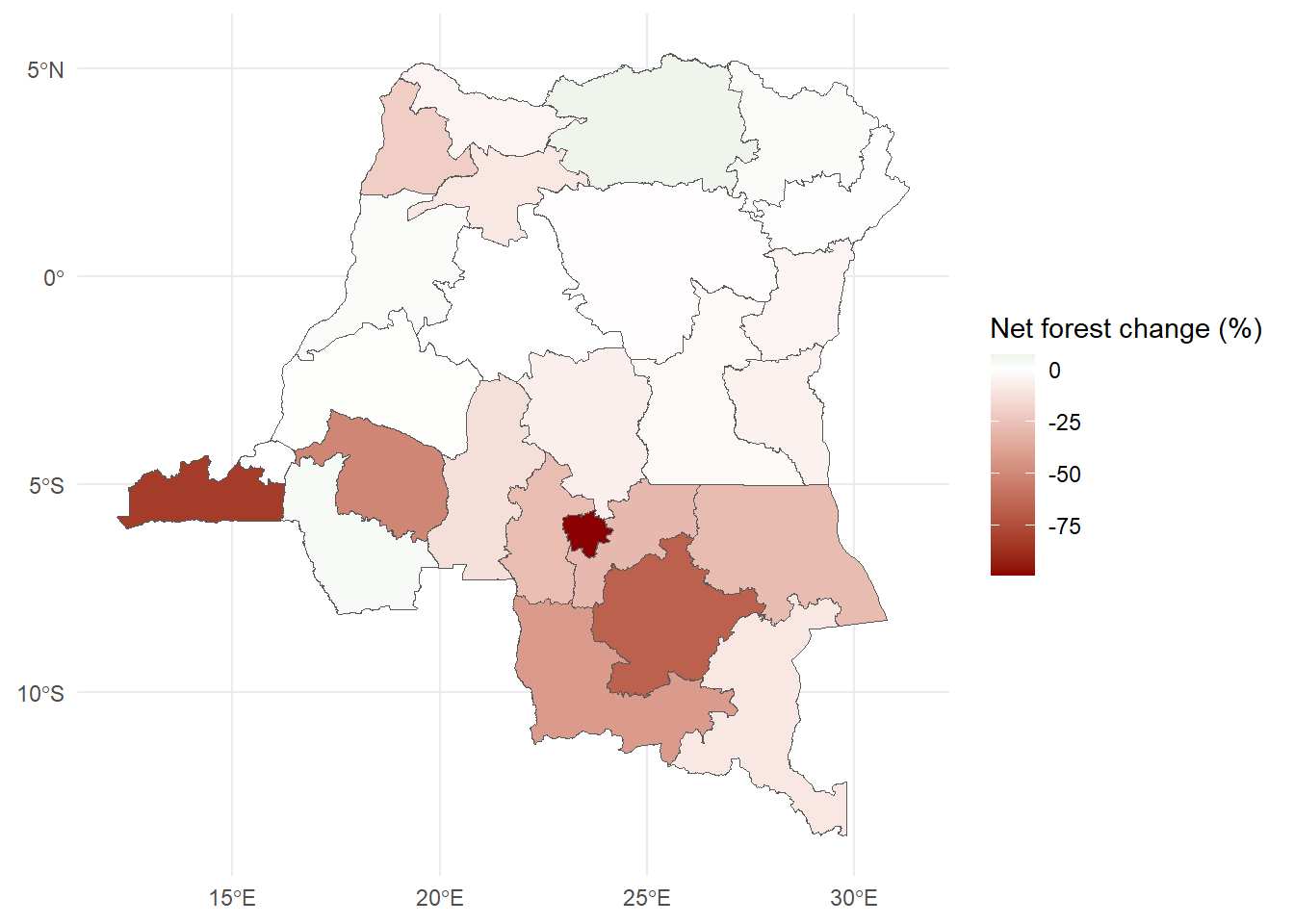

We can also visualize the results in the table above spatially by finding the net forest loss normalized by the baseline total area of forest cover in the province in 2001.
# Use original raster from 2001 and summarize forest cover by region
forest_2001_region <- terra::extract(forest_2001,
drc_borders_vector,
fun="sum",
weights = TRUE,
na.rm = TRUE,
bind = TRUE
)
forest_2001_region[["forest_sqkm"]] <-
forest_2001_region[["Majority_Land_Cover_Type_1"]] * 5.56^2
# Remove original column because there is an identically-named
# column in the dataframe we're about to merge to
forest_2001_region$Majority_Land_Cover_Type_1 <- NULL
# Merge total forest cover in 2001 to the regional net change SpatVector
percent_change_region <- merge(
forest_2001_region,
lulc_difference_region,
by = "ID",
all.x = TRUE
)
# Divide net change by the baseline area of forest cover
percent_change_region[["percent_change"]] <-
percent_change_region[["net_sq_km_change"]] / percent_change_region[["forest_sqkm"]] * 100
# Kinshasa's region had zero pixels of forest in 2001 or 2021, so is NA in percent_change
percent_change_region$percent_change[is.na(percent_change_region$percent_change)] <- 0
# Map using the net percent change in forest
forest_by_region_map <- ggplot() +
layer_spatial(percent_change_region, aes(fill=percent_change)) +
scale_fill_gradient2(
low = "darkred",
mid = "white",
high = "darkgreen",
midpoint = 0,
name = "Net forest change (%)"
) +
theme_minimal()
forest_by_region_map
We’ll take the sum of net forest change in square kilometers across all provinces, then multiply by 100, as there are 100 hectares per one square kilometer.
# Sum the net change across all regions
sum(lulc_difference_region$net_sq_km_change)*100 # 100 hectares per square kilometer
#> [1] -6005956We’ve calculated a net 6 million hectare loss of forest between 2001 and 2021. Our rough estimate matches Global Forest Watch’s figure of tree cover loss for 2000 to 2020, despite using data at a much lower spatial and temporal resolution. However, we know this figure glosses over a lot of sources of error, uncertainty, and nuance. This is merely a starting point.
Vegetative indices and other remotely-sensed land cover data are also used to measure deforestation, but they come with their own complications as well. In future installments, we will discuss measuring forest degradation instead of total forest loss using VCF data, describe the complexities of working with seasonality in vegetative cover, and investigate an analysis example of the impact of forest loss on human health.
